Bucket Weigher

No items found.

Bucket Weigher

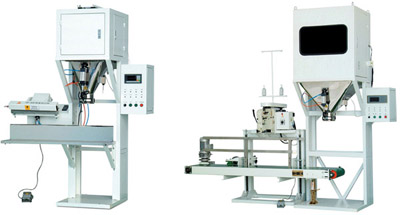

The Genesis Pack Quantitative Weigher, available in Small (BS-5S) and Big (BS-30H) bucket models, is ideal for precise packaging of granules like rice and sugar. Constructed with stainless steel contact parts and a mild steel painted frame, it supports easy operation with the ability to pre-set and save up to 10 product profiles. The weigher can connect to an L-shaped sealing machine for plastic bags or a sewing machine for knitted bags. The BS-5S model handles 0.5-5 kg with speeds of 13-16 bags/min, while the BS-30H manages up to 30 kg at 6-7 bags/min, with an accuracy of 0.1-0.3%. Both operate on a 380V power supply and require 0.4-0.6MPA air at 1m³/h.
Product description

Main features:

• This weigher is mainly used for the quantitative packaging of granules in rice, sugar-making and food etc.

• All parts in contact with products are made of stainless steel..

• The machine frame is made of mild steel, surface painted.

• 10 sets of products information can be pre-set and saved, making operating it easy.

• Connected with the L-shaped sealing machine can be used for filling and sealing plastic bags.

• Connected with the sewing machine can be used for filling and sealing knitted bags..

Specifications

Name
Small buckets Quantitative Weigher
Big buckets Quantitative Weigher
Model
BS-5S
BS-30H
Bucket size
5Kgs
15Kgs
Weighing range
0.5-55kgs
1-15kgs
15-30kgs
Weighing speed
13-16bags /min
12-14 bags/min
6-7 bags/min
Weighing accuracy
0.1-0.2%;
0.1-0.2%;
0.3%
Power supply
380V,AC,50HZ,1000W
380V,AC,50HZ,1100W
Air requested
0.4-0.6MPA, 1M3/H
0.4-0.6MPA, 1M3/H
